Manufacturers of Quality Industrial and Medical Rubber Products

Nitrile (Buna-N) Type "BUNAC" Inflatable Plugs, Polyester Covered

For Oil Pipelines and FME (Foreign Material Exclusion) Usage

Regarding Perma-Type's Inflatable Pipe Plugs

  • Cloth Pulling-Loops – Perma-Type has cloth pulling-loops on each one of its Nitrile (Buna-N) Type “BUNAC” inflatable pipe plugs for ease of use.

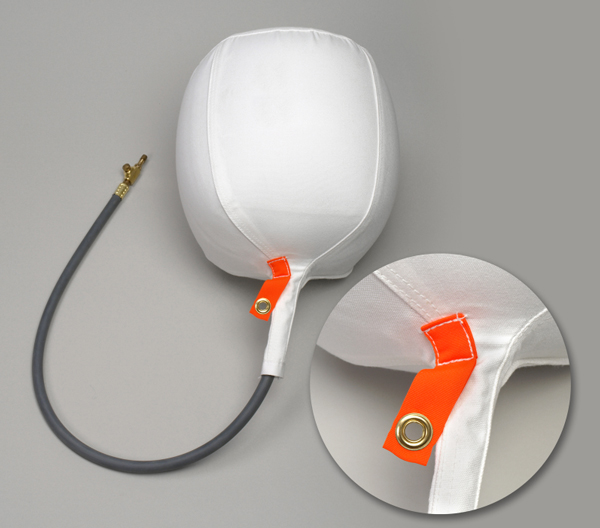

Brass Grommet(s)Click To Enlarge
Brass Grommet(s)
  • Brass Grommet(s) - Catalog No. 000716 GROMMET – 7/16” I.D. brass grommet(s) can be placed onto any cloth loop(s), on any size Perma-Type inflatable pipe plug. Available as either a single grommet or multiple grommets, depending upon requirements. Use rope, cord, chain, cable, etc. Grommet makes retrieval of pipe plug easy.

Please continue to help us, help you. For any feedback or suggestions, you are invited to email us anytime at: reachus@emailptusa.com

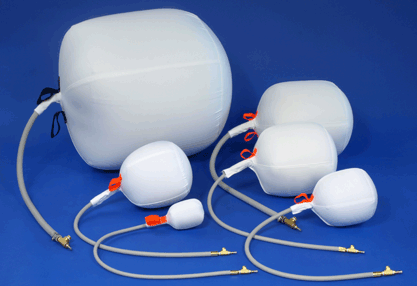

PT Plug Group 2 grey tubing
 Resistant to :
  • Oil
  • Kerosene
  • Gasoline
  • Hydraulic Oil
  • Hydrocarbons

CATALOG
NO.		 INFLATED
PLUG O.D.
(INCHES)		 INFLATED
PLUG O.D.
(MM)		 MAXIMUM
PRESSURE		 VOLUME
C.l.= CUBIC INCHES
C.F.=CUBIC FEET		 INFLATED DIMENSIONS
Length
(inches) (mm)		 Tube Length (IN.) TUBING
I.D. (IN.)		 TAP
HOLE
SIZE
REQUIRED		 APPROX.
WEIGHT
(WITH
FITTING)
In Plug In Line
PSI Bar PSI Bar

PTBUNAC02

 2 51 15 1.03 1 .07 12.6    C.I. 4 102 36" 0.25 1" 8.5 oz.

PTBUNAC03

 3 76 15 1.03 1 .07 35.3    C.I. 5 127 36" 0.25 1" 9.5 oz.

PTBUNAC04

 4 101 15 1.03 1 .07 75.4    C.I. 6 152 36" 0.25 1.25" 10 oz.

PTBUNAC05

 5 127 15 1.03 1 .07 137.4    C.I. 7 178 36" 0.25 1.25" 12 oz.

PTBUNAC06

 6 152 15 1.03 1 .07 226.2    C.I. 8 203 36" 0.375 1.5" 1 lb.

PTBUNAC08

 8 203 12 .83 1 .07 452.4    C.I. 9 229 36" 0.375 2" 1.25 lbs.

PTBUNAC10

 10 254 10 .39 3/4 lb. .05 863.9    C.I. 11 279 36" 0.375 2" 1.45 lbs.

PTBUNAC12

 12 304 8 .55 3/4 lb. .05 0.91    C.F. 14 356 36" 0.375 2.5" 2.25 lbs.

PTBUNAC14

 14 355 6 .41 1/2 lb. .03 1.4    C.F. 16 406 36" 0.625 2.5" 4.5 lbs.

PTBUNAC15

 15 381 6 .41 1/2 lb. .03 1.7    C.F. 17 432 36" 0.625 2.5" 5 lbs.

PTBUNAC16

 16 406 6 .41 1/2 lb. .03 2.1    C.F. 18 457 36" 0.625 3" 5.25 lbs.

PTBUNAC18

 18 457 5 .34 1/2 lb. .03 2.8    C.F. 19 483 36" 0.625 3" 5.40 lbs.

PTBUNAC20

 20 508 5 .34 1/2 lb. .03 4.5    C.F. 23 584 36" 0.625 4" 7.6 lbs.

PTBUNAC21

 21 533 3 .21 1/2 lb. .03 4.8    C.F. 24 610 36" 0.625 4" 7.50 lbs.

PTBUNAC22

 22 558 3 .21 1/2 lb. .03 5.5    C.F. 25 635 36" 0.625 4" 7.65 lbs.

PTBUNAC24

 24 609 3 .21 1/2 lb. .03 7.1    C.F. 27 686 36" 0.625 4" 8.60 lbs.

PTBUNAC26

 26 660 3 .21 1/4 lb. .02 9.5    C.F. 31 787 36" 0.625 5" 10.20 lbs.

PTBUNAC28

 28 711 3 .21 1/4 lb. .02 11.4    C.F. 32 813 36" 0.625 5" 11.40 lbs.

PTBUNAC30

 30 762 3 .21 1/4 lb. .02 13.9    C.F. 34 864 36" 0.625 5" 13 lbs.

PTBUNAC32

 32 812 3 .21 1/4 lb. .02 16.8    C.F. 36 914 36" 0.625 5" 13.25 lbs.

PTBUNAC34

 34 863 3 .21 1/4 lb. .02 19.9    C.F. 38 965 36" 0.625 5" 15.25 lbs.

PTBUNAC36

 36 914 1 .21 1/4 lb. .02 24.7    C.F. 42 1,067 36" 0.625 5" 17.25 lbs.

PTBUNAC40

 40 1,016 1 .07 1/4 lb. .02 35.6    C.F. 49 1,245 36" 0.625 6" 26 lbs.

PTBUNAC42

 42 1,066 1 .07 1/4 lb. .02 42.5    C.F. 53 1,346 36" 0.625 6" 27 lbs.

PTBUNAC44

 44 1,117 1 .07 1/4 lb. .02 47.5    C.F. 54 1,372 36" 0.625 6" 33.5 lbs.

PTBUNAC48

 48 1,219 1 .07 1/4 lb. .02 58.6    C.F. 56 1,422 36" 0.625 6" 35 lbs.

PTBUNAC54

 54 1,371 1 .07 1/4 lb. .02 87.5    C.F. 66 1,676 36" 0.625   41.80 lbs.

PTBUNAC60

 60 1,524 1 .07 1/4 lb. .02 114.5    C.F. 70 1,778 36" 0.625   53.65 lbs.


PLEASE INQUIRE FOR PRICE AND DELIVERY


NEW ITEM! INFLATION VALVE ALTERNATIVE

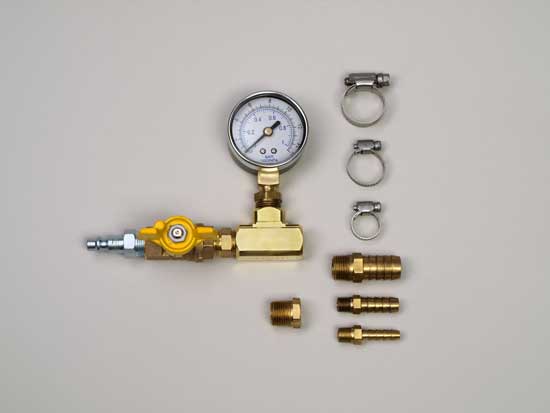

Item # OBVTHKIT, Ball Valve Kit with T-Handle

Click To Enlarge
Item # OBVTHKIT, Ball Valve Kit with T-Handle

Ball Valve Kit with T-Handle

  • Used for Perma-Type's Natural Rubber Type "NRC" and Nitrile (Buna-N) Type BUNAC Type inflatable pipe plugs.
  • Fits all Perma-Type pipe plug sizes from 2" diameter (51 mm) to 60" diameter (1,524 mm).
  • Instructions included.
  • Approximate Weight: 1 lb. 3 oz.
  • Can also be purchased as a separate item

Click Here For More Information
